making DCPS universal CD
Documented : WDPQU / 2003.6.03 / EMU-ZONE / http://WWW.EMU-ZONE.NET
Translated : Hyk 2004.08.21 (this is a rush translation and I have not tested
the method myself, so please dont ask or complain)
Updated : Hyk 2006.02.10
added my personal notes to simplify the process for those who
already have an iso of a PS1 game.
--------
--------
Here is a guide to create PS2/PS/DC-BLEEMCAST/PC-PSEMU universal CD, using <RAY
STORM> PLAYSTATION as an example. You start with using CDRWIN to extract the
tracks!
Software required:
CDRWIN(4.0A or 3.9C or 3.8A), NERO(558), Isobuster(0.99.5), ASPI(472),
SELFBOOT(DC-CDRECORD)
1.
When using CDRWIN to extract tracks, if the first track is a data track and the
rest are audio tracks, and error occurs with direct extract, this proves that
the LBA value of the data track is offset.

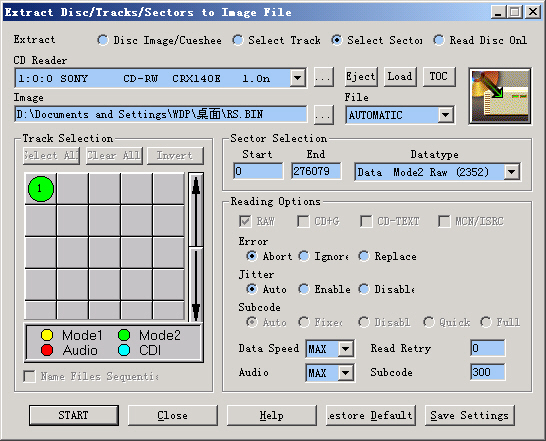

in [Extract Disc/Tracks/Sectors to Image File], select [Read Disc Only], then
click [START]. you can see the first data track's LBAs is 000000 to 276079
(CDRWIN3.JPG).
select [Select Sector], set the LBA valus, Start=0 , End=276079.
select [Dataype]. [Data Mode2 Raw (2352)],
fillin the full path\filename in the [Image] row,
press [START].
If you want to extract the audio tracks of other games, you can use IsoBuster
to extract them, create a cue sheet for the data and audio tracks, then use
DAEMON to mount the CUE sheet, and then use CDRWIN to create a CUE + BIN 2352
iso for the whole disc :
[Extract Disc/Tracks/Sectors to Image File] --> [Disc Image/Cueshee].
2.
Now use NERO to burn the first session:
[File(F)] --> [Burn image(B)]...

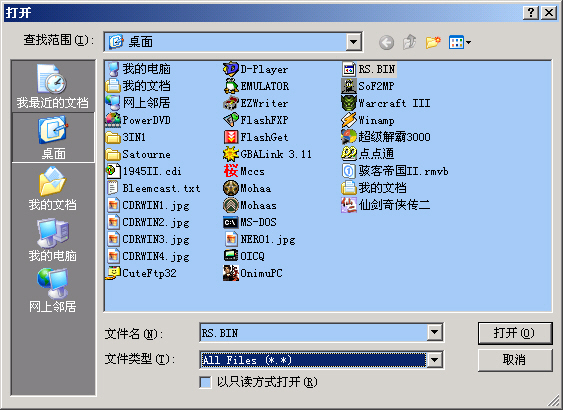

In the file dialog set file type (Y) to [All Files (*.*)] select the BIN file
say RS.BIN (Note: dont load the CUE sheet),
set [ISO data type] to [Data mode 2], [confirm]
In settings, uncheck [finalise CD], TAO, Speed set to below 6X
ignore the warnings and press "yes (Y)"!
3.
with the first seession burnt, you can now test it with PC-PSEMU. If there is
no problem, you can go ahead and create the second session BLEEMCAST DEMO ISO.

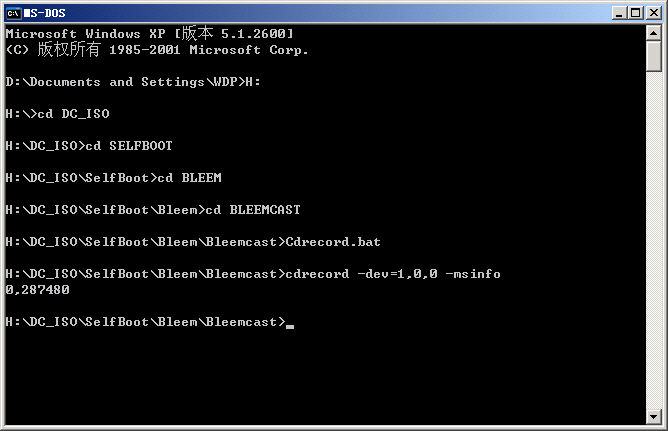

use ScanBus.bat to find the bus address of the burner, e.g. 1,0,0 , (if it is
not 1,0,0, say 0,1,0 , then edit Cdrecord.bat: -Dev=1,0,0 to 0,1,0). Make sure
the previous CDR is in the burner, Run Cdrecord.bat under a Dosbox , you will
get the LBA value 0,287480 (MS-DOS1.JPG),
edit Bleem.bat with this value , run Bleem.bat to create Bleemcast.iso.
run IPINS.EXE, first line enter IP.BIN, second line enter BLEEMCAST.ISO
(MS-DOS1.JPG).
4.
use CDRWIN to burn the second session
[File Backup and Tools], [Image Filename]: BLEEMCAST.ISO , [Disc Type]:
CDROM-XA , [Track Mode]: MODE2 , [SPEED]: 6X,
check [Finalize/Close Session], [Write Postgap],
uncheck [Open New Session], [Test Mode], [Verify Recorded Image] (Z.JPG),
[Satrt]
5. tests
Works on PC-PSEMU, PLAYSTATION and PLAYSTATION 2. Works on DREAMCAST too
(depending on BLEEMCAST's compatibility).
--------
--------
Q1
the first session PLAYSTATION cannot be seen, only the second session is
visible, have to use Isobuster to see the first session.
Q2
if the Dreamcast image format is DiscJuggler, you can use Alcohol 120% to burn,
data format set to [Play Station], uncheck [Dont close last
session(L)](ALCOHOL1.JPG, ALCOHOL2.JPG).
--------
--------
Good luck!
=====================
Hyk's personal notes:
for those of you who already have an ISO/Bin+cue of the playstaion game:
1. use NERO to burn the PS1 iso/bin, burn as mode 2 data type and leave the
session open (unfinalise CD)
DO NOT USE a cue file as you cant change to mode 2 data type with a cue
CDRWIN cant burnt a mode 2352 iso/bin as mode 2 and hence cant be used
in most cases
2. note the LBA of the above CD and use it to create the 2nd session image
(1BLEEM.BIN and IP.BIN is all you needed and DO NOT binhack 1BLEEM.BIN)
3. burn the 2nd session as per Echelon's selfboot method
(NERO does not support 2nd session iso mode 2 burning......)
When using CDRWIN to extract tracks, if the first track is a data track and the
rest are audio tracks, and error occurs with direct extract, this proves that
the LBA value of the data track is offset.
in [Extract Disc/Tracks/Sectors to Image File], select [Read Disc Only], then
click [START]. you can see the first data track's LBAs is 000000 to 276079
(CDRWIN3.JPG).
select [Select Sector], set the LBA valus, Start=0 , End=276079.
select [Dataype]. [Data Mode2 Raw (2352)],
fillin the full path\filename in the [Image] row,
press [START].
If you want to extract the audio tracks of other games, you can use IsoBuster
to extract them, create a cue sheet for the data and audio tracks, then use
DAEMON to mount the CUE sheet, and then use CDRWIN to create a CUE + BIN 2352
iso for the whole disc :
[Extract Disc/Tracks/Sectors to Image File] --> [Disc Image/Cueshee].
2.
Now use NERO to burn the first session:
[File(F)] --> [Burn image(B)]...
In the file dialog set file type (Y) to [All Files (*.*)] select the BIN file
say RS.BIN (Note: dont load the CUE sheet),
set [ISO data type] to [Data mode 2], [confirm]
In settings, uncheck [finalise CD], TAO, Speed set to below 6X
ignore the warnings and press "yes (Y)"!
3.
with the first seession burnt, you can now test it with PC-PSEMU. If there is
no problem, you can go ahead and create the second session BLEEMCAST DEMO ISO.
use ScanBus.bat to find the bus address of the burner, e.g. 1,0,0 , (if it is
not 1,0,0, say 0,1,0 , then edit Cdrecord.bat: -Dev=1,0,0 to 0,1,0). Make sure
the previous CDR is in the burner, Run Cdrecord.bat under a Dosbox , you will
get the LBA value 0,287480 (MS-DOS1.JPG),
edit Bleem.bat with this value , run Bleem.bat to create Bleemcast.iso.
run IPINS.EXE, first line enter IP.BIN, second line enter BLEEMCAST.ISO
(MS-DOS1.JPG).
4.
use CDRWIN to burn the second session
[File Backup and Tools], [Image Filename]: BLEEMCAST.ISO , [Disc Type]:
CDROM-XA , [Track Mode]: MODE2 , [SPEED]: 6X,
check [Finalize/Close Session], [Write Postgap],
uncheck [Open New Session], [Test Mode], [Verify Recorded Image] (Z.JPG),
[Satrt]
5. tests
Works on PC-PSEMU, PLAYSTATION and PLAYSTATION 2. Works on DREAMCAST too
(depending on BLEEMCAST's compatibility).
--------
--------
Q1
the first session PLAYSTATION cannot be seen, only the second session is
visible, have to use Isobuster to see the first session.
Q2
if the Dreamcast image format is DiscJuggler, you can use Alcohol 120% to burn,
data format set to [Play Station], uncheck [Dont close last
session(L)](ALCOHOL1.JPG, ALCOHOL2.JPG).
--------
--------
Good luck!
=====================
Hyk's personal notes:
for those of you who already have an ISO/Bin+cue of the playstaion game:
1. use NERO to burn the PS1 iso/bin, burn as mode 2 data type and leave the
session open (unfinalise CD)
DO NOT USE a cue file as you cant change to mode 2 data type with a cue
CDRWIN cant burnt a mode 2352 iso/bin as mode 2 and hence cant be used
in most cases
2. note the LBA of the above CD and use it to create the 2nd session image
(1BLEEM.BIN and IP.BIN is all you needed and DO NOT binhack 1BLEEM.BIN)
3. burn the 2nd session as per Echelon's selfboot method
(NERO does not support 2nd session iso mode 2 burning......)
